WS-9905

PAPER FRENCH FRIES Carton ERECTING MACHINE
1 Mold Paper pail, Carton erecting and gluing machine

       Advantage: WS-9905: 1 Mold Paper pail, Carton erecting and gluing machine

  • Introduce:Carton Erecting Machine is a special forming machine to produce burger box, one block box, food pail box(togo box),French Fires box and so on containers made by cardboard paper and corrugated paper.
  • Materials:Cardboard paper one side PE coated paper (200~600GSM),or corrugated paper with maximum thickness 1.5MM.
  • PS:Also can produce containers made by aluminum foiled paper,2PE or 1PE coated paper with hot gluing system.
  • Advantages:1.Ability of producing different products by the same machine. Shortage changing mold’s time. Easy changing mold.
    2.Controlled by PLC , HMI.

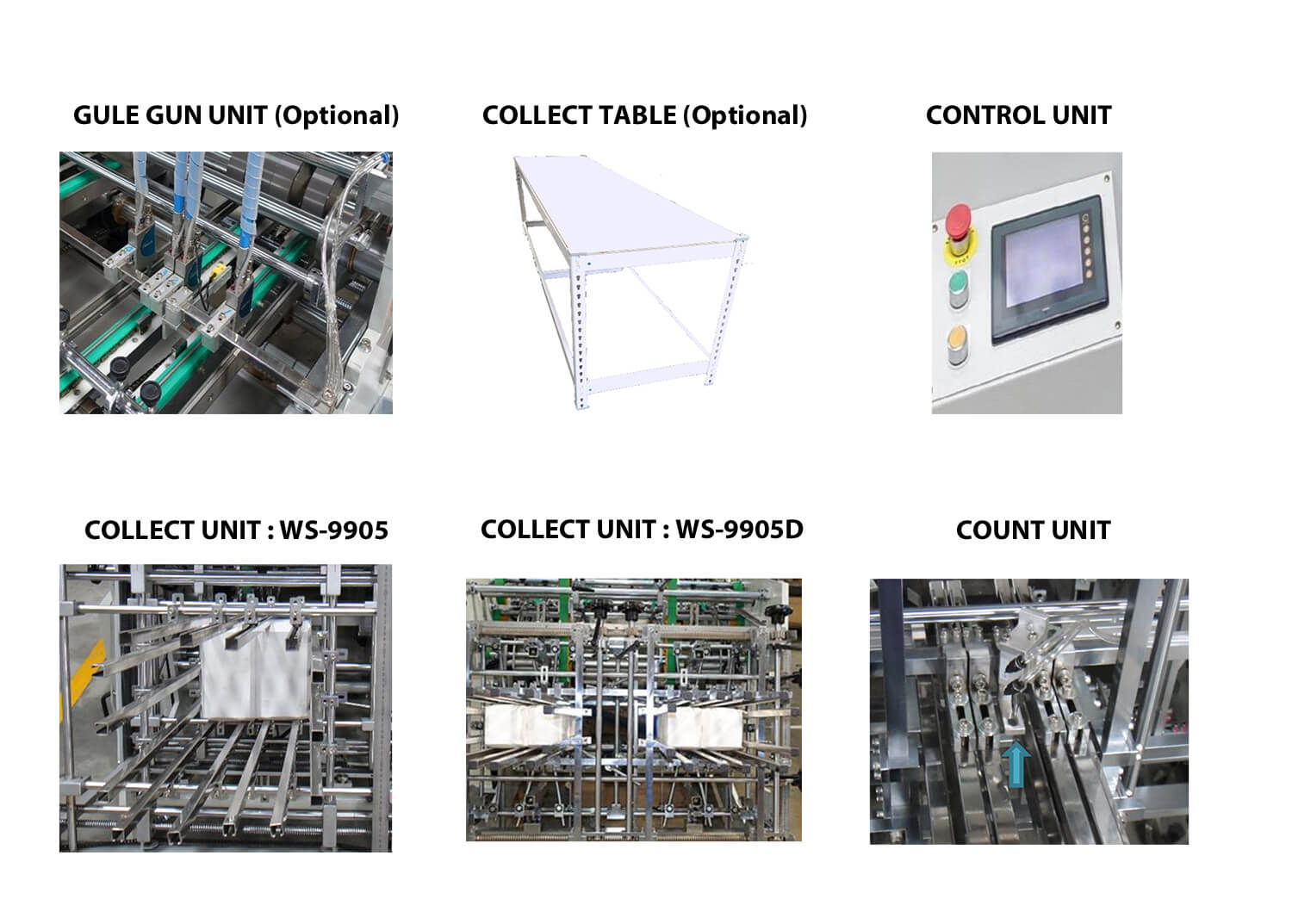

    3.Finished products are collected ,stacked , and counted automatically.
    • Food pail forming machine
    • Paper pail forming machine
    • Food container forming machine
    • Paper Pail
    • Fold-Pak
    • Takeout Box
    • Takeout containers
    • Disposable Paper Take Out Food Containers

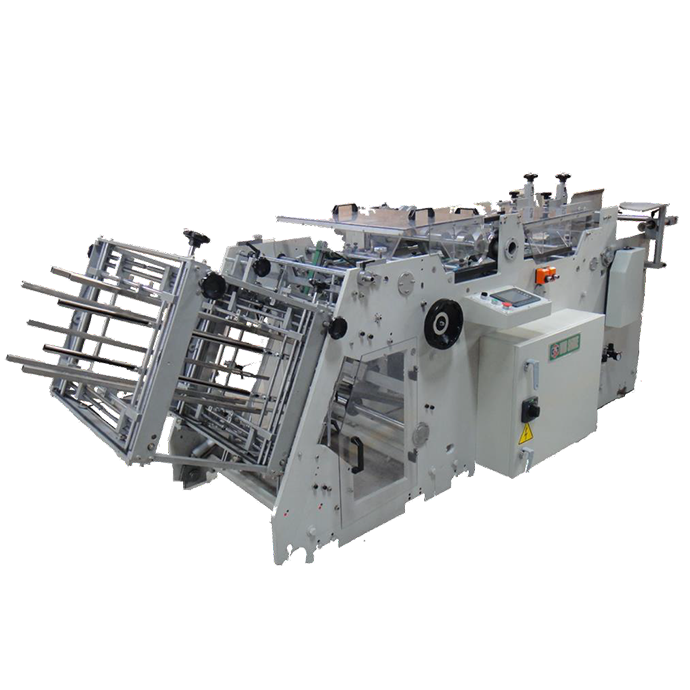

WS-9905 Paper Carton Erecting Machine
WS-9905 Paper Carton Erecting Machine
Product Introduction

Description

A Paper Carton Erecting Machine is typically used to automatically form, fold, and seal flat carton blanks into boxes. This machine is especially useful in the food packaging industry for creating various types of food containers. Here are some common food boxes that a Carton Erecting Machine can be used to produce:

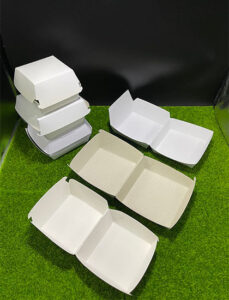

  • Burger Boxes – Automatically erecting and sealing boxes for packaging burgers and meal sets, ensuring they stay intact during transport.

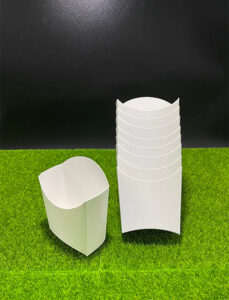

  • French Fries Boxes – For packaging fries and fried foods, the machine forms sturdy boxes with oil-resistant features.
  • Bento Boxes – Used for takeout meals, the machine forms boxes with multi-compartments to separate different food items.
  • Soup Boxes – For hot soup packaging, ensuring that boxes are properly sealed and leak-proof.
  • Salad Boxes – For salads or cold meals, with foldable designs that can include transparent lids.
  • Takeout Boxes – Commonly used in food delivery services, forming boxes that resist moisture and maintain the food's quality.
  • Pastry Boxes – For cakes, pastries, and other delicate foods, ensuring the boxes are securely sealed to prevent damage.
  • Pizza Boxes – Automatically forming larger boxes with strong structures to fit pizzas, providing oil resistance.
  • Chicken Wing Boxes – For fried chicken and similar foods, creating boxes that can handle oil and moisture.


The Paper Carton Erecting Machine significantly enhances production speed and ensures precise, reliable packaging for these various types of food boxes, supporting efficient packaging operations in the food industry.

Specification

Model Dimension
L W H A1 A2

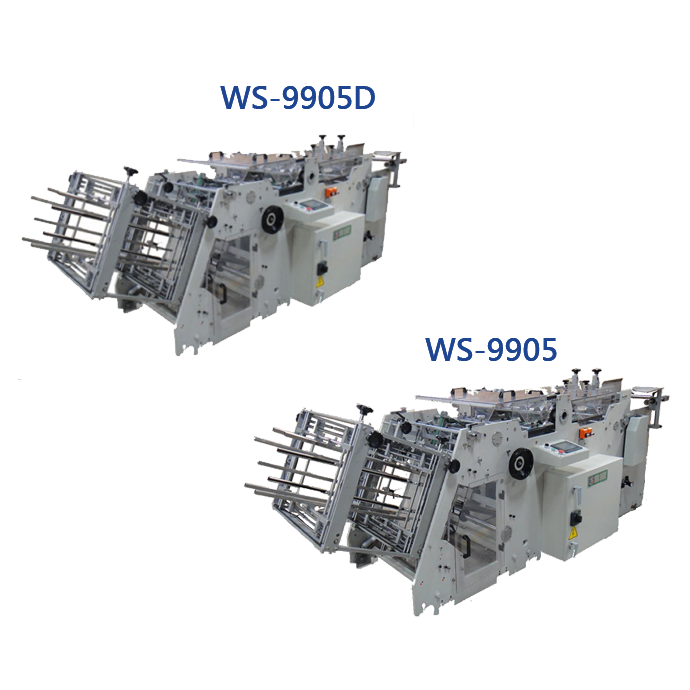

WS-9905 / WS-9905S 100~450 100~580 15~200 5~40 5~40
No. WS-9905S
Description
Production Speed (pcs/min) Servo : 80~180
Paper Material
Sealing Method Glue Sealing
Electrical Requirement Approx. 7 kw
Compressed Air Approx. 100 ℓ/min
Machine Dimension (LxWxH cm) 370x138x150
Machine Weight (NW kgs) 2000
Mold 1
Material 200~600g/m2 cardboard
or corrugared board E/F/N flute
Paper Thickness 0.36~1.5mm

* Customized design in welcome.
* We reserve the right to alter specifications without prior notice.

Video


WS-9905-Carton erecting machine-Paper
Clamshell box, gluing machine, high speed,
mold changeable, power save.
from Win Shine Machinery from Taiwan on Vimeo.

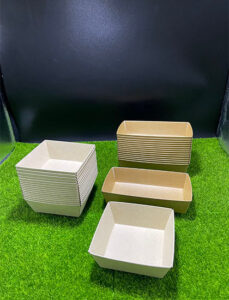

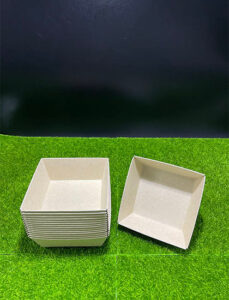

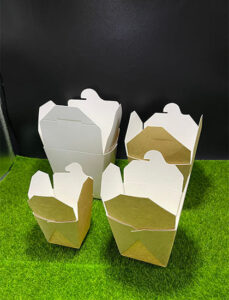

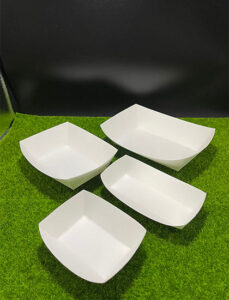

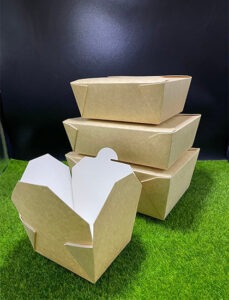

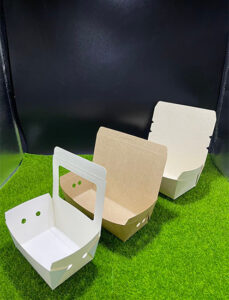

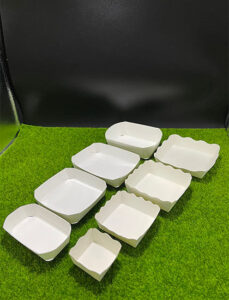

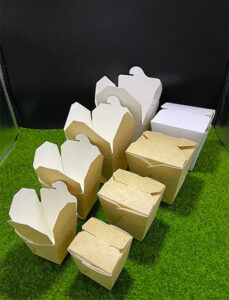

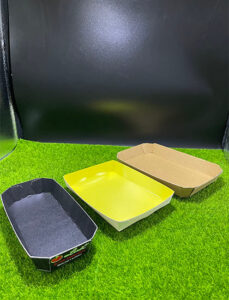

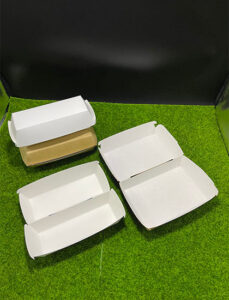

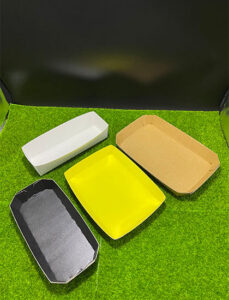

Application
